5.8 G and AV IN input 2 Antenna Dual Receive FPV Video Glasses For Four Axis Aircraft
Race drone small size, flexible movement, the most suitable for travel in complex terrain, but this also often means that the aircraft to go beyond the visual distance or the line of sight is blocked, with ENMESI F2-A43 first angle of view FPV glasses, really do "see where", experience the fun of flying driving.
Product Details:
| Screen Size | 4.3inch |
| Material | TFT |
| Resolution | 480*272 |
| FOV | Field of view: 0/120 degrees (horizontal/vertical) |
| Power consumption | 1.5W in HD mode, 2.3W in 5.8G mode |
| Channels | 48channesl (6 bands *8 channels), support channel auto-searching |
| Battery | 600mAh reachargeable Li-battery |
| Size | 150mmX82mmX145mm |
| Weight | 280g |
Product Description
This product, the main function has two, one is wireless signal 5.8GHz, called FPV function, mainly connected to the model, UAV, or other 5.8GHZ signal; another feature is AV-IN, which requires wired connections to some video output devices, such as DVDS, PSP, PS2, PS3, TV-BOX, MP4, MP5 and so on.
FPV's equipment consists of: carrier, antenna, video transmitter, video receiver, image display storage, remote control increase, camera and others.
Product Features
- ENMESI F2-A43 Upgrade 5.8Hz map transmission, the frequency band radio using orthogonal frequency Division Multiplexing Technology (OFDM) SU, single sector rate of up to 54Mbps. Large data throughput, ideal for image transmission. ENMESI F2-A43 has 48 channels with superb anti-jamming capabilities.
- ENMESI F2-A43 has two search channel modes-Receive search and automatic search.
- ENMESI F2-A43 uses ultra-high resolution screen, delicate imaging, no particle sense, no distortion, no bias color, the real reduction of the flight environment..
- There are two main functions of ENMESI F2-A43.
AV in input: When connected to the AV in signal, the screen automatically switches to the screen signal output from the AV out device.

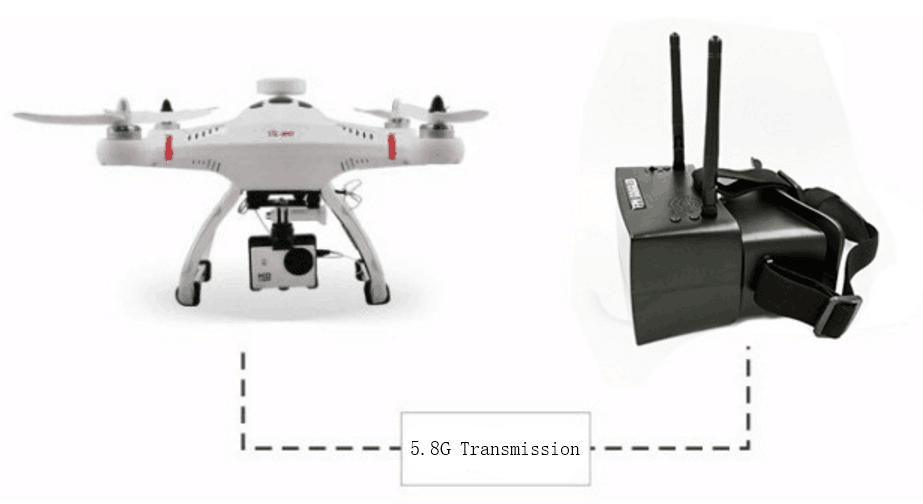

5.8 G Analog FPV image transmission: When switching to 5.8G analog FPV image transmission mode, there must be a 5.8G analog transmission transmitter nearby.
Packing
- Gift box packaging --- Exquisite gift box packaging for gift giving.
- Micro USB cable --- 1 meter mini USB cable for fast charging.
- Charger --- 5V/1A
- User manual --- Easy to understand operation guide for quick product understanding.
- Warranty card --- Have a 1 year warranty, use with confidence.
- Cleaning cloth --- Can make you clean use of this product.
- 2*rod antennas --- Dual antennas receive at the same time, signal stability.
- Gain 8dBi
- Clothing bag --- Easy to carry, prevent product scraping.
- Headband --- Adjustable distance and size for all head types, simple to wear, soft and comfortable.
- AV cable --- 40cm
